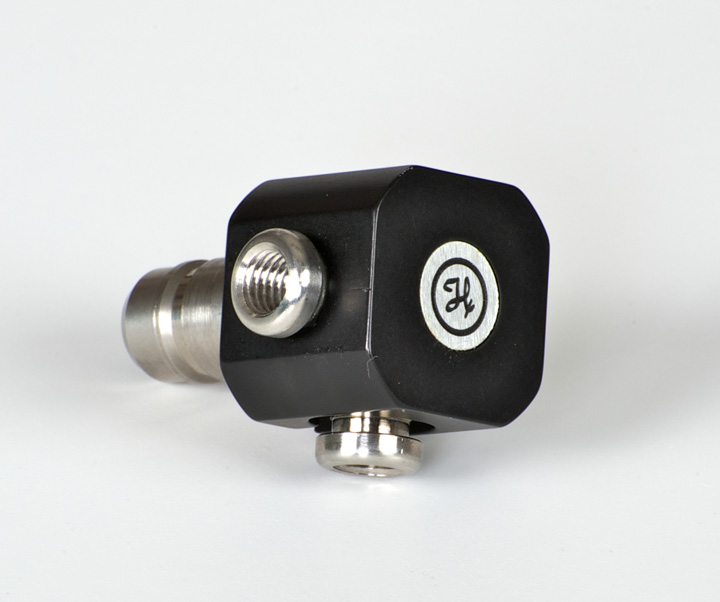

CERAMIC VALVE, 3-2, MVP, ALUMINUMVALVE, CERAMIC, 3-2, MVPСпецификация| Actuated | Ceramic Modular Valve Positioner | | Break Away Torque | 15 oz-in (105.9 mNm) | | Fluid Path | Aluminum oxide/CTFE/ETFE | | Housing Material | Aluminum | | Nominal Port Diameter | 0.060 inch (1.5 mm) | | Operating Pressure | 0 to 100 psig (0 to 6.9 bar) | | Operating Temp High | 35 °C (95 °F) | | Operating Temp Low | 10 °C (50 °F) | | Panel Mounting | No | | Panel Thickness | N/A | | Storage Temp High | 50 °C (122 °F) | | Storage Temp Low | -20 °C (-4 °F) | | Thread Depth | 0.320 (8.1 mm) | | Threaded Connection | ¼-28 | | Total Dead Volume | 65 µL per path | | Valve Model | 3-2 | | Valve Model Description | HVC 3-2 MVP | | Valve Outer Body Dimension | 0.85 inch (21.6 mm) | | Valve Size | HVC | | | |
Информация для заказа| Область использования: | Производство: | Hamilton | | Метод: | | | Объем: | | | Кат. номер: | 9411-01 | | Цена (с НДС 20%): | по запросу | В корзину  |  Наименование: CERAMIC VALVE, 3-2, MVP, ALUMINUM / VALVE, CERAMIC, 3-2, MVP.
Примечание: дополнительная информация (на английском языке). |
|
