Гель-документирующая система UVP GelSolo

Product details

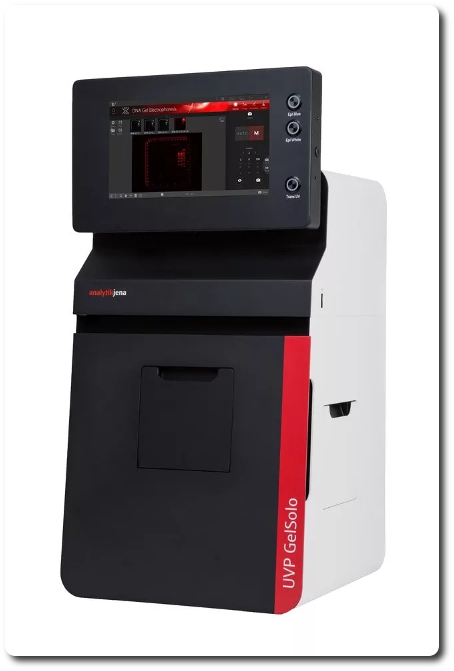

The UVP GelSolo is a compact, easy-to-use, stand-alone system for gel documentation. It is designed to acquire gel images easily and without any need for training. Thus, it is ideal for multi-user laboratories and practical trainings. The UVP GelSolo system includes a light-sensitive monochrome camera with a high resolution of 5 megapixels. A highly sensitive zoom lens allows for high-contrast image acquisition. The system is controlled by an 11.6” touch screen with the intuitive VisionWorks image acquisition and analysis software.

Emission filters
The three-position emission filter tray can be used to place three different filters and switch between them for different applications. An Ethidium Bromide filter is included with the system, but a variety of other emission filters are available for additional purchase.

Transilluminators
Seven different UV Transilluminator options are available based on filter size and UV wavelength (Filter sizes: 20 x 20 cm, 21 x 26 cm or 25 x 26 cm; Wavelength: 1UV 302 nm,
2UV 302/365 nm or 3UV 254/302/365 nm, 100-115 V/60 Hz or 230 V/50 Hz). A blue light transilluminator is also available.

Intuitive Software
The VisionWorks software on the UVP GelSolo is a powerful yet intuitive software for capturing gel images and analyzing them. The simple user interface enables easy access to auto and manual image capture modes under the Device tab. Exposure time can be adjusted with customizable exposure settings. Captured images are saved in TIFF or JPEG formats.

Image Analysis
Image enhancement and analysis features are included with all systems. Researchers can personalize their experiments and make use of enhancement features and annotation tools for publication purposes. The software offers many powerful tools such as noise reduction, histogram adjustment, inversion, pseudocolor, and more. The extensive analysis features such as automatic lane and band detection, 1D analysis, area density, and colony counting, are optimized for accurate and reproducible results. All the data can be conveniently exported to Excel.

Technical Data

Specifications/features	UVP GelSolo
Camera/Lens	GelCam 315, 5.0 MP, with 8-48mm, f/1.2 manual zoom lens
Darkroom features	11.6” large articulating touch screen Wide front door with UV safety switch Gel viewer window Epi white and epi blue LEDs Side access doors USB ports 3-position emission filter tray
Accessories included	Ethidium bromide filter Choice of UV transilluminator (Filter sizes: 20 x 20cm, 21 x 26cm or 25 x 26cm; Wavelength: 1UV 302nm, 2UV 302/365nm or 3UV 254/302/365nm, 100-115V/60Hz or 230V/50Hz), or blue light transilluminator
Dimensions: H x W x D	80.5 x 39.4 x 38.4 cm (31.7 x 15.5 x 15.1 inch)

Order Information

Order number		Description
230 V	115 V	Name	Transilluminator (filtersize, wavelength)
849-97-0934-02	849-97-0934-01	UVP GelSolo, M-20V	20 x 20 cm, 302 nm
849-97-0935-02	849-97-0935-01	UVP GelSolo, M-26V	21 x 26 cm, 302 nm
849-97-0936-02	849-97-0936-01	UVP GelSolo, M-26XV	25 x 26 cm, 302 nm
849-97-0937-02	849-97-0937-01	UVP GelSolo, LM-20	20 x 20 cm, 302/365 nm
849-97-0938-02	849-97-0938-01	UVP GelSolo, LM-26	21 x 26 cm, 302/365nm
849-97-0939-02	849-97-0939-01	UVP GelSolo, LMS-20	20 x 20 cm, 254/302/365 nm
849-97-0940-02	849-97-0940-01	UVP GelSolo, LMS-26	21 x 26 cm,254/ 302/365 nm

Order number	Description
849-95-0611-01	Blue LED Transilluminator
849-00401-0	Emission filter, 50 mm square, with transmission range 510 - 560 nm, for e.g. SYBR® Green stains
849-00402-0	Emission filter, 50 mm square, with transmission range 520 - 620 nm for e.g. SYBR® Gold stains
849-20510-0	UVP Visi-White Converter plate, UV-to-white, 21 cm x 26 cm filter size
849-20511-0	UVP Visi-White Converter plate, UV-to-white, 25 cm x 26 cm filter size
849-20520-0	UVP Visi-Blue Converter plate, UV-to-blue, 21 cm x 26 cm filter size, 460 nm - 470 nm
849-20521-0	UVP Visi-Blue Converter plate, UV-to-blue, 25 cm x 26 cm filter size, 460 nm - 470 nm
