Двусторонняя карбоновая лента, 12mm(W)x20m(L)

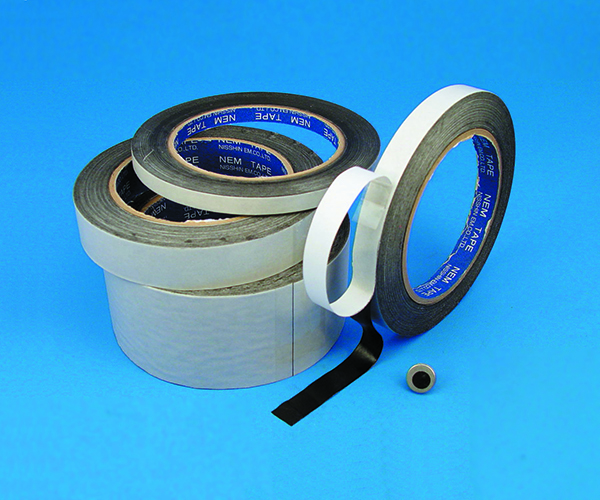

Double Sided Carbon Tape
With carbon double-sided tape, small particle sizes, such as 15-20 microns, can be mounted on the adhesive and produce good background structure. Our Double sided Carbon tape is also available in five widths to accommodate varying specimen mount surface sizes and applications.
| Technical Data |
Double sided Carbon Tape |
| PAD |
Isolate unwoved cloth |
| Overall Thickness |
0.16 mm |
| PAD |
0.07 mm |
| Adhesive |
0.045 mmx2 |
| Conductive resistivity |
50 ohm/sq.Inch |
| Adhesive Power/25 mm width |
1,000 gf |
| Capacity after 60 min |
0.2 mm |
| Size |
12 mm (W) x 20 m (L) |
With Aluminum base as opposed to unwoven base. Offers a smoother surface.
Информация для заказа
| Область использования: | Производство: | Electron Microscopy Sciences |
| Метод: | |
| Объем: | 20 м/упак |
| Кат. номер: | 77817-12-Al |
| Цена (с НДС 20%): | по запросу | В корзину  |
Наименование: Двусторонняя карбоновая лента, 12mm(W)x20m(L).
Примечание: |
